A stone basin shop drawing is the fabricator's dimensioned translation of your design — plan, elevations, a section through the bowl, and the drilling layout — and the numbers that decide whether it fits are the tolerances printed beside each dimension. For cut-to-size natural stone, the Natural Stone Institute's Dimension Stone Design Manual (2022) allows ±1/16 in. (±1.5 mm) on face dimensions up to 6 ft, ±1/4 in. (±6 mm) on thickness over 2 in., and ±1/16 in. in 4 ft on flatness. Size your vanity opening around those bands rather than the nominal number, and the install goes quietly.
We draw every basin before we cut it, and we send that drawing to the person who ordered it. This is what is on it, what each term means, and which numbers you should be checking.
A shop drawing is not a design drawing
Your design drawing says what you want. The shop drawing says what the workshop will actually produce: finished dimensions, wall thicknesses, bowl depth, drain position, drilling centres, edge profile, and the direction the vein runs. It is the last document where a change is cheap.
It is also not a contract rewrite. The standard general conditions published by the Engineers Joint Contract Documents Committee (EJCDC C-700, 2018) state the principle plainly: Submittals, whether or not approved or accepted by Engineer, are not Contract Documents.
Approving a drawing confirms the dimensions; it does not quietly change what was specified. If something on the drawing differs from the order, it has to be called out, not buried.
The cost of skipping that check is smaller than the industry folklore suggests, but it is real. In a 2026 study published in the Journal of Construction Engineering and Management, Peter E. D. Love measured actual field rework on live projects at 0.38% of contract value before completion, rising to 0.76% once post-completion corrections were counted — against earlier published figures as high as 12.4%. The same study found rework was under-reported by roughly 300%. On a single basin, one wrong drain centreline is not 0.38% of anything; it is the whole piece.
The tolerances that govern a carved basin
The Natural Stone Institute defines a tolerance as an allowable deviation from the specified or designed value — not an error, and not an excuse. These are the cut-to-size bands from the 2022 Dimension Stone Design Manual:
| Dimension | Tolerance (NSI, 2022) |
|---|---|
| Calibrated thickness, 1/4"–5/8", smooth finish | ±1/32 in. (±0.8 mm) |
| Thickness, over 5/8" to 2" | ±1/8 in. (±3 mm) |
| Thickness, over 2" | ±1/4 in. (±6 mm) |
| Face dimension, lengths up to 6 ft | ±1/16 in. (±1.5 mm) |
| Face dimension, areas over 50 ft² | ±1/8 in. (±3 mm) |
| Flatness, cut-to-size, smooth finish | ±1/16 in. in 4 ft (±1.5 mm in 1.2 m) |
Read the thickness row again, because it is the one that catches people. A solid basin carved from a block is thick stone — the deck and apron sit in the "over 2 in." band, where ±1/4 in. is allowed. A 24 in. wide basin can therefore arrive at 23-15/16 in. or 24-1/16 in. and still be correct. Design the cabinet opening with 1/4 in. of slack per side and that variation disappears into the reveal. Design it to the exact number and you are gambling.
Hand-carving adds a second distinction the drawing should make explicit: which surfaces are held and which are shaped. We hold the footprint, the deck thickness, the drain centreline and the drilling positions to the cut-to-size bands above. The interior bowl radii, the flute profile and the backsplash curve are carved by hand and carry wider, visual bands — two basins from the same drawing will not have identical flutes. That is the point of a made-to-order stone basin, but it belongs on the drawing as a note, not as a surprise.
The terms, decoded
- Nominal vs. finished dimension. Nominal is the name of the size ("24-inch basin"). Finished is what the drawing commits to, with its tolerance. Only the finished dimension matters for cabinetry.
- Overall (O.A.). The outside envelope including any backsplash or apron — the number your opening has to clear.
- Deck. The flat stone surface surrounding the bowl, where the tap drilling lands.
- Apron. The exposed front face of a farmhouse-style basin.
- Reveal. The deliberate gap between stone and cabinet. This is where tolerance is absorbed.
- Rough-in. The plumbing and bracket positions the wall must be built to, dimensioned from finished floor and finished wall — not from studs.
- Drain centreline. The single most consequential dimension on a wall-mounted basin, because the trap arm is already in the wall.
- Drilling. Number, diameter and spacing of tap holes. The drawing should name the faucet, because the hole diameter follows the faucet manufacturer's spec, not a house standard.
- Vein direction. An arrow showing how the block is oriented. Rotate it and you get a different basin from the same dimensions.
The spec sheet beside the drawing
The drawing gives geometry; the specification gives material. For marble, ASTM C503/C503M, Standard Specification for Marble Dimension Stone, sets the floor:
| Property | ASTM C503 requirement | Test method |
|---|---|---|
| Absorption by weight | 0.20% max | ASTM C97 |
| Density, calcite marble | 162 lb/ft³ (2,595 kg/m³) min | ASTM C97 |
| Density, travertine | 144 lb/ft³ (2,305 kg/m³) min | ASTM C97 |
| Compressive strength | 7,500 psi (52 MPa) min | ASTM C170 |
| Modulus of rupture | 1,000 psi (7 MPa) min | ASTM C99 |
| Flexural strength | 1,000 psi (7 MPa) min | ASTM C880 |
Two honest readings of that table. First, these are classification minima — a stone meeting them is marble by the standard, not automatically the best block in the quarry. Second, the 0.20% absorption ceiling is why sealing a marble basin is a surface-chemistry question rather than a porosity question; the stone is already close to dense. Travertine's lower density minimum reflects its open vughs, which is a texture choice, not a defect. More on how those materials differ in our stone basin overview.
How we run the approval loop
- Dimensioned drawing. Plan, front and side elevation, section through the bowl, drilling layout, vein arrow, tolerance note.
- Your markup. Red pen, questions, revised numbers. Nothing is cut at this stage.
- Signed revision. One drawing becomes the reference for fabrication, for the packing check and for any later claim.
- Slab photo. The actual block, so vein and colour are agreed before carving, not after.
- Pre-ship photo against the drawing. Finished piece with a tape where the critical dimensions are.
If you are specifying for a client, step 3 is the one worth protecting. Tell us your tolerance priority — overall width, drain position, or deck height — and we will hold that one tight and let the others float within the bands above. You can start a drawing here, and the same approval loop applies to an above-counter vessel basin as to a built-in.

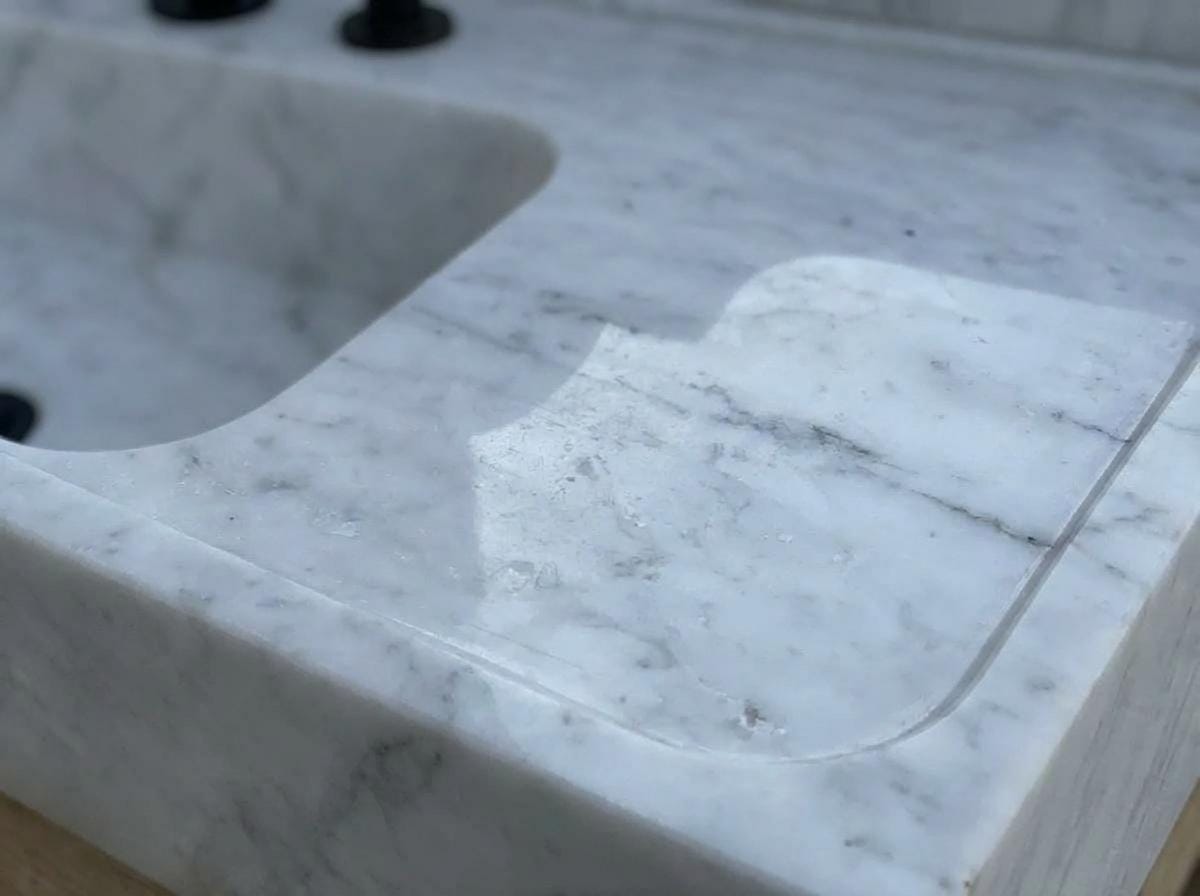

Two basins that begin as a drawing
FAQ
What should a stone basin shop drawing include?
Plan view, front and side elevations, a section through the bowl showing depth and wall thickness, drilling layout with the faucet named, edge profile, vein direction, and an explicit tolerance note stating which dimensions are held and which are carved by hand.
How much can the finished basin differ from the drawing?
Within the published cut-to-size bands: ±1/16 in. (±1.5 mm) on face dimensions up to 6 ft and ±1/4 in. (±6 mm) on thickness over 2 in., per the Natural Stone Institute's 2022 Dimension Stone Design Manual. Anything outside those bands is a fabrication fault, not a tolerance.
Who is responsible for the field measurements?
Whoever signs them. We draw from the dimensions we are given; if the opening is built later, those numbers need re-checking against the finished wall and floor before the drawing is approved, because a wall-mounted basin's trap arm cannot move after tiling.
Do I need a drawing for a standard-size basin?
Yes, and it is short. Even a catalogue size has a drilling layout, a drain position and a tolerance band, and those three items are what cabinetry and plumbing are built around.
